Structured Cabling

Structured Cabling

In the cable world, the term structured cabling gets thrown around often. People use it as a buzzword, but what does it really.

According to the Fiber Optic Association, structured cabling is the standardized architecture and components for communications cabling specified by the EIA/TIA TR42 committee and used as a voluntary standard by manufacturers to ensure interoperability.

A properly designed and installed structure cabling system provides a cabling infrastructure that delivers predictable performance as well as has the flexibility to accommodate moves, additions, and changes; maximizes system availability; provides redundancy; and future proofs the usability of the cabling system.

What Does Structured Cabling Look Like?

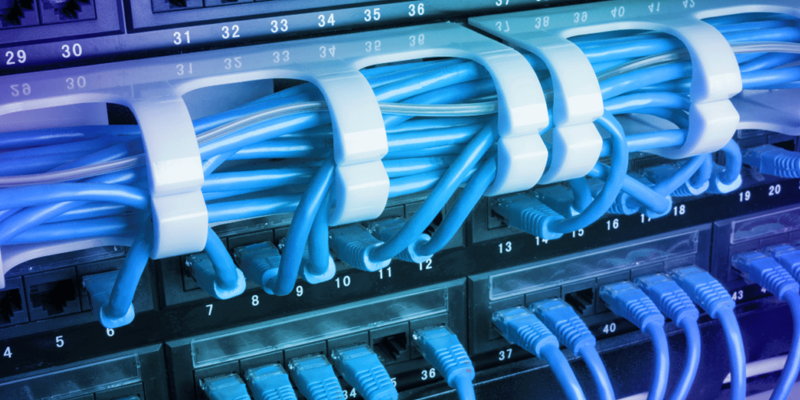

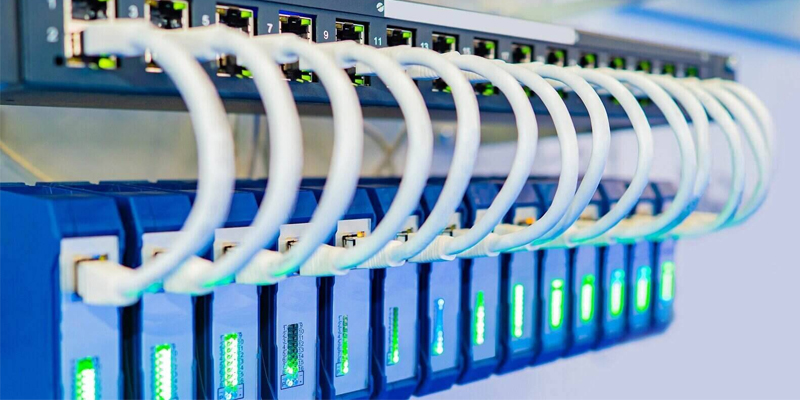

In a structured cabling system, a series of patch panels and trunks are used to create a structure that allows for hardware ports to be connected to a patch panel at the top of the rack. That patch panel is then connected to another patch panel via a trunk (multi-fiber assembly designed for use in conveyance) in the MDA (Main Distribution Area).

What are the benefits of structured Cabling?

• Moves, adds, and changes are much easier due to the fact that they are done in the MDA versus running long patch cords from equipment racks.
• Time savings; cable and port tracing becomes a much easier job with a structured cabling system. This logical, organized approach not only makes changes easier, but it saves you time.
• Aesthetics; Never underestimate the looks! A structured cabling system will look much cleaner than a point-to-point method. Since the changes are done in the MDA versus at the hardware, the hardware can be cabled up and not touched in most instances. This allows the cabling in front of the switch to remain aesthetically pleasing.
